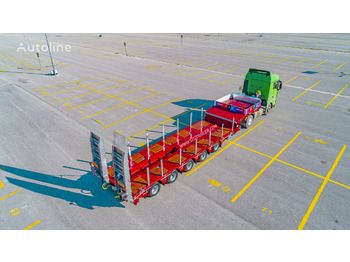

Semirremolque góndola rebajadas nuevo KOMODO EXTENDABLE LOWBED

GENERAL SPECIFICATIONS

Legal Loading Capacity :69 tons with truck,4 axle (+ -%3) (It can be Show a change according to each countries laws)

Platform Length :9300 mm

Platform Extension Length : 4000 mm

Gooseneck Length : 4000 mm

Platform Length

Width : 2550 mm

Width Extension : 300 mm + 300 mm galvanised side enlargement brackets

Height of Platform (Empty) : 900 mm

Height of Platform (Loaded : 820 mm

MOVING PARTS AND CHASSIS SPECIFICATIONS

Chassis : Chassis is manufactured by robotic welding with high strength S 690 Q sheet metal, 8/9 riflet sheet.

Floor : 75 mm oven dry beech tree

Axle : Gigant self steering axle with drum full Set includes:

- 4 pcs 11 ton capacity axle

- 1st axles lifting, 2 axles are fixed , 2 axles are self steering

- 8 pcs of spring and flange

- 8 pcs suspension air springs

- 4 pcs 24 type of brake cylinders

- 4 pcs 24-30 types of spring brake chambers

- 8 pcs automatic brake adjusters

- Drum brake system,

- Emergency brake,

- Load adjusting valve,

- EBS, (Electronic brake system),

- 16 pcs 245 / 70 R 17,5 (141/143 J) tires

Ramp Type : 2 units of short mechanical ramps are included. Suitable for hydraulic folding and sliding operations, has hardwood covering with 75 mm thickness, 3,700 mm length and 900 mm width, 8 degrees of ramp angle, load capacity is 60,000 kg and 2,800 mm height in closed position

ACCESSORIES

- 4 pcs side expanding warning signs, 2 pcs equipped with led lamp,galvanised,red an White warning signs

- 1 set of static,50 tons of capacity,double speed,mechanic landing gears

- 1 piece conforming to standarts,removable type,3,5 inch King-pin

-Side and rear warning lamps and signgs

- Fire exthinguisher

- Stopper for tires

ELECTRICAL SYSTEM AND SIGNALISATION

- Conforming to standarts of Turkey and EU

- 24 V,

- ABS plug,

- 2 pcs of 7 functional stop lamps

- 2 pcs of lamps for lightning the plate

- Side warning lamps

- Speed signgs

- Reflectors

- Swivel lamp on rear bumper

GUARANTEE

 1 years Guarantee for using parts from Manufacturer. (Excluding accident and usage errors),

 1 years (Excluding accident and usage errors)

 1 year paintwork (Accident - except for usage errors)

PAINT

 Application of sandblasting with steel grit to all steel structures

 2 layers Epoxy primer application

 90 NM painted with two coats of paint in the oven
