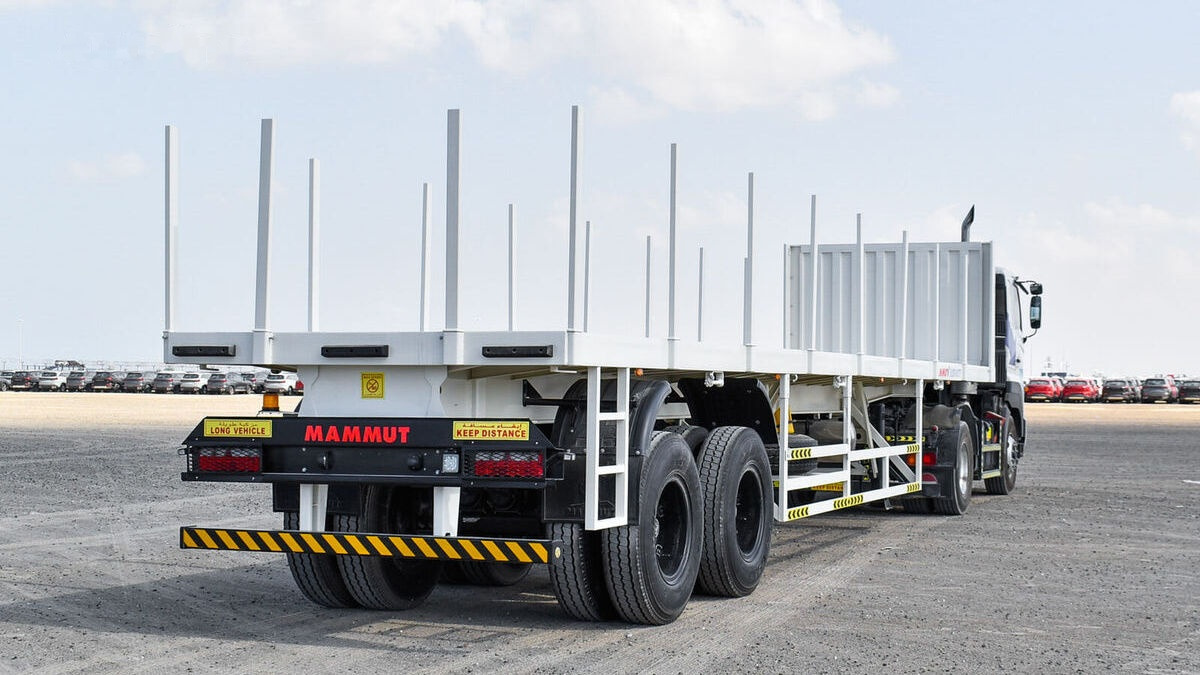

Semirremolque plataforma/ Caja abierta nuevo Mammut New

Length:

13,050 mm

Width:

2,600 mm

Bed Length:

12,565 mm

Bed Width:

2,500 (approx)

Bed Height:

1,760 mm

Construction Chassis:

Longitudinal members of Hot rolled/welded I beams of Grade ST 52-3 or equivalent. All other pressed steel channels/plates of Grade ST 37-2 or equivalent.

Floor:

4 mm chequered plate mounted on suitable cross members

Front Head Board:

1500 mm Headboard fabricated from steel plate, corrugated with vertical supports/pillars and tarpaulin basket.

Axle:

2 x 16 Tons Tandem bogie type axles.

Tyres:

8+1 nos.12.00 R24” tyres

Rims:

8+1 nos. 8.50 x 24” suitable rims

Brakes:

Twin line drum brakes, acting on all wheels with ‘S’ cam actuation. Two single acting diaphragm brake chambers per axle. Service & emergency relay valves. Automatic load sensing valve. Air reservoir.

Landing Gear:

Two speed mechanical, telescopic type.

King Pin:

3.5” dia. to SAE standard interchangeable to 2

Electrics:

"7 way quick release connector, Pair of 24 volts rear light units, each comprising tail light, brake and signal lights fitted with high intensity bulbs Aspock® or equivalent. 4 nos. side markers on either side, Registration plate lamps, Reverse light with horn, Revolving beacon.

Painting System:

Surface treatment Grit blasted to S.A.2.5 One coat of Zinc rich epoxy primer and top coat of High gloss Polyurethane finish paint in single color. (Paint White).

Warranty:

One year from the date of delivery of product from all manufacturing defects.

Interior features & Safety

Mudguards with rubber mud flaps.

Basket type spare wheel carrier.

1200 mm side stakes with pockets (8+8+2)

Heavy duty rear bumper with reflecting stripes as per local requirements

1 no. tool box. (without tools)

5 nos. ratchet type lashing mechanism. (3+2)

Provision for registration plate fixing.

8 nos. twist locks suitable for 2x20’ containers/1x40’ container.

Access ladder at rear

1 no. water tank

Side under run protection as per local requirements.

1 no.Fire extinguisher bracket.B21"
